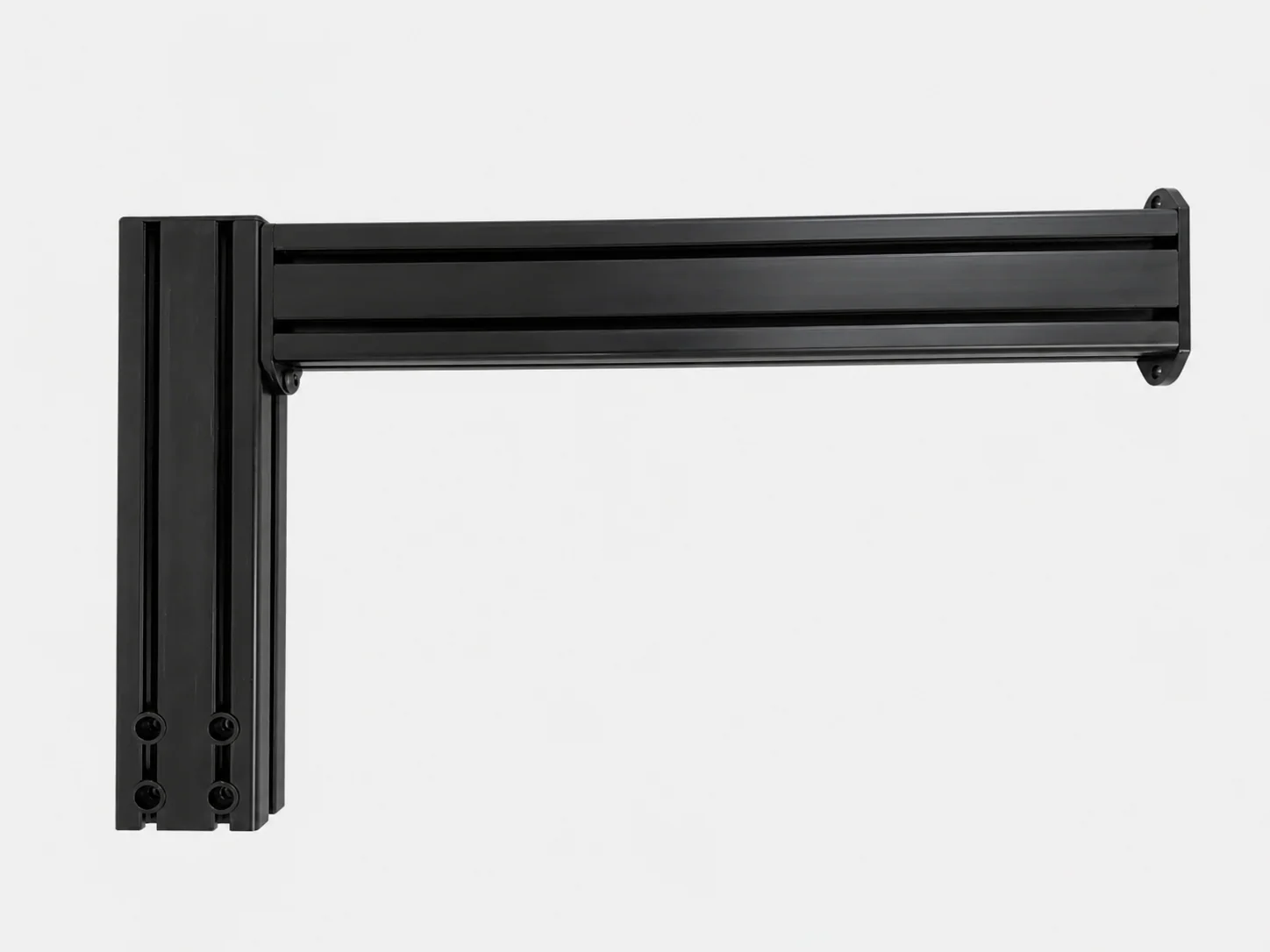

Focus Sim Racing Integrated Shifter Arm

Designed to feel like a true extension of the chassis rather than a generic add-on, the Focus Sim Racing Integrated Shifter Arm delivers a clean, rigid mounting solution for shifters, handbrakes, keyboard trays, button boxes, and other cockpit accessories.

Built using a dual-profile supported structure, this assembly reduces flex commonly found in unsupported cantilever-style shifter mounts while maintaining a clean, integrated appearance. The low-profile CNC-machined aluminum brackets and through-bolt cup washer mounting system eliminate bulky external brackets for a stronger, lighter, and more refined installation.

Key Features

• Supported dual-profile design for improved rigidity and reduced flex
• Low-profile integrated bracket system for a clean chassis-integrated appearance
• Through-bolt cup washer mounting system increases clamping force while reducing visual clutter
• Reversible left or right side installation
• Adjustable vertical positioning between mounting uprights
• Compatible with most 40-series aluminum profile rigs
• 40 x 40 mounting pattern designed to fit many 80, 120, and 160 profile chassis
• Designed for rigs with external-facing T-slots
• Made in Southern California

Construction

• Black anodized aluminum extrusion
• CNC-machined aluminum brackets
• Black powder-coated bracket finish
• Integrated low-profile mounting hardware design

Dimensions

• Total assembly size: 594mm x 360mm
• 500mm horizontal arm extrusion
• 360mm vertical support extrusion

Compatibility

• Designed for 40-series aluminum profile chassis
• Requires external-facing side T-slots
• Not compatible with flat-face chassis designs
• Requires approximately 594mm of mounting space from the rear of the upright to the rear of the chassis

Included

• Integrated Supported Shifter Arm Assembly
• All required mounting hardware
• Integrated cup washer mounting system

Specific shifter, handbrake, keyboard, and accessory mounts are not included.
